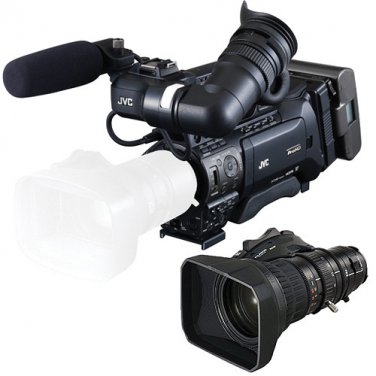

JVC ProHD Camcorder XT20SX47BRM ENG Lens
JVC GY-HM890CHU ProHD Compact Shoulder Mount Camera
Camera
Image Sensor 3 x 1/3" 2.2MP CMOS sensors
Effective resolution: 2.07MP
Synchronization System Internal / external
Stabilizer Optical image stabilizer
Sensitivity f/11 (60 Hz) / f/12 (50 Hz), 2000 lx (typical; Extended mode)
Minimum Illumination 0.15 lx (typical; 1920 x 1080 mode, f/1.6, Lolux mode with 1/30 or 1/ shutter)
Shutter Speed 1/4 to 1/10000
Gain -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC
ND Filters Clear, 1/4, 1/16, 1/64
Lens Mount System Canon 1/3" bayonet
LCD Display 4.3", 1.15MP
Viewfinder 0.45", 1.22MP
Recording
Recording Media 2 x SDHC/SDXC memory card, Class 4/6/10 (Class 4 for AVCHD and H.264 SD/Web only)
Video Codecs MPEG-2 Long GOP (HD)
AVCHD progressive
H.264
File Formats MOV (HD/SD/Web)
MP4 (XDCAM EX)
MTS (AVCHD progressive)
MXF
Recording Modes NTSC Setting
MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /59.94i/29.97p/23.98p
1440 x 1080 /59.94i
1280 x 720 /59.94p/29.97p/23.98p
SP Mode:
1440 x 1080 /59.94i
1280 x 720 /59.94p
AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /59.94p
HQ mode (24 Mbps): 1920 x 1080 /59.94i
SP mode (17 Mbps): 1920 x 1080 /59.94i
LP mode (9 Mbps): 1440 x 1080 /59.94i
EP mode (5 Mbps): 1440 x 1080 /59.94i
H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /59.94p/59.94i/29.97p/23.98p
UHQ mode (35 Mbps): 1920 x 1080 /59.94i/29.97p/23.98p
H.264 (SD)
720 x 480 /59.94
H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /29.97p/23.98p
LP mode (1.2 Mbps): 480 x 270 /29.97p/23.98p
PAL Setting
MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /50i/25p/2p
1440 x 1080 /50i
1280 x 720 /50p
SP Mode:
1440 x 1080 /50i
1280 x 720 /50p
AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /50p
HQ mode (24 Mbps): 1920 x 1080 /50i
SP mode (17 Mbps): 1920 x 1080 /50i
LP mode (9 Mbps): 1440 x 1080 /50i
EP mode (5 Mbps): 1440 x 1080 /50i
H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /50p/50i/25p
UHQ mode (35 Mbps): 1920 x 1080 /50i/25p
H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /25p
LP mode (1.2 Mbps): 480 x 270 /25p
Audio Recording MPEG-2 Long GOP/H.264: LPCM 2ch/4ch, 48 kHz, 16-bit
AVCHD: AC3 2ch
Web: μ-law 2ch/4ch
Interface
Inputs 1 x HD/SD-SDI (BNC)
2 x XLR 3-pin (MIC, +48V, LINE)
1 x 3.5mm mini jack
1 x Genlock (BNC)
1 x Time code (BNC)
1 x XLR 4-pin DC power input
Outputs 1 x Composite (BNC)
1 x 3G-SDI (BNC)
1 x HDMI
2 x RCA
2 x 3.5mm headphone jack
1 x Time code (BNC)
1 x XLR 4-pin DC power input
USB 1 x Network connection host / mass storage device connection
Remote 1 x 6-pin DIN
1 x 2.5mm mini jack
General
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 35 to 80%
Storage Temperature 14 to 122°F (-20 to 50°C)
Storage Humidity Under 85%
Power 12 VDC (10.5 to 17V)
Power Consumption Approx. 28 W
Dimension L x W x H 20.5 x 9.1 x 9.5" (521.0 x 231.0 x 242.3 mm)
Weight Without battery: Approx. 8.9 lb (4.0 kg)
With battery: Approx. 10.6 lb (4.8 kg)
Packaging Info
Box Dimensions (LxWxH) 19.7 x 13.5 x 9.4"
Fujinon XT20SX4.7BRM HDTV Zoom Lens
Format 1/3"
Zoom Ratio 20x
Focal Length 4.7-94mm
Maximum Relative Aperture 1:1.4 (4.7-87.7mm)
1:1.5 (94mm)
M.O.D. from Front of Lens 0.9 m
Object Dimensions at M.O.D. 4.7mm 901 x 506mm
47 x 26mm
Angular Field of View (horizontal x vertical)
4.7mm 58° 11' x 34° 44'
59mm 3° 11' x 1° 48'
Filter Size 82mm P=0.75
Inner Focus Yes
Macro Yes
Functions QuickZoom
Innerfocus
Digital Servo
Dimensions (Diam. x L) 3.3 x 7.5" (85 x 190mm)
Weight 3.3 lbs (1.5kg)
Packaging Info
Box Dimensions (LxWxH) 12.9 x 9.3 x 7.6"
