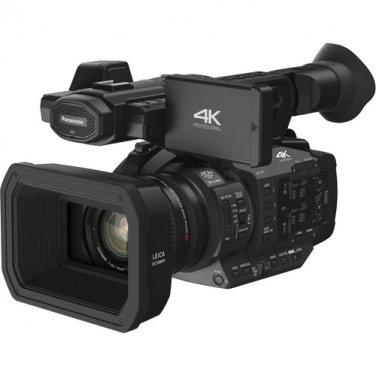

Panasonic HC-X1 4K Ultra HD Professional Camcorder
Panasonic HC-X1 Specs
Camera
Sensor 1x 1"-type MOS Sensor
Effective Pixels DCI 4K: 9.46 MP
UHD/HD: 8.79 MP
Optics
Focal Length 8.8 - 176 mm
35mm Equivalent Focal Length 24-480mm @ DCI 4K resolution
25.4-508mm @ UHD/HD resolution
Maximum Aperture f/2.8-4.5
Zoom Optical: 20x
Intelligent: 30x
Digital: 2x, 5x, 10x
Filter Thread 67 mm
Built-In ND Filters Clear, 1/4, 1/16, 1/64
Recording
System NTSC/PAL
Recording Media SDHC/SDXC
Video Format DCI 4K:
MP4/MOV:
4096 x 2160p / 24 fps (100 Mbps)
UHD:
MP4/MOV
3840 x 2160p / 59.94 fps (150 Mbps)
3840 x 2160p / 50 fps (150 Mbps)
3840 x 2160p / 59.94 fps (100 Mbps)
3840 x 2160p / 29.97 fps (100 Mbps)
3840 x 2160p / 25 fps (100 Mbps)
3840 x 2160p / 23.98 fps (100 Mbps)
HD:
MP4/MOV
1920 x 1080p / 59.94 fps (200 Mbps)
1920 x 1080p / 59.94 fps (100 Mbps)
1920 x 1080p / 59.94 fps (50 Mbps)
1920 x 1080p / 29.97 fps (200 Mbps)
1920 x 1080p / 29.97 fps (50 Mbps)
1920 x 1080p / 23.98 fps (200 Mbps)
1920 x 1080p / 23.98 fps (50 Mbps)
AVCHD
1920 x 1080p / 59.94 fps (25 Mbps)
1920 x 1080p / 50 fps (25 Mbps)
1920 x 1080p / 23.98 fps (21 Mbps)
1920 x 1080i / 59.94 fps (21 Mbps)
1920 x 1080i / 59.94 fps (17 Mbps)
1440 x 1080i / 59.94 fps (5 Mbps)
1440 x 1080i / 50 fps (5 Mbps)
1280 x 720p / 59.94 fps (8 Mbps)
SD:
AVCHD
NTSC (9 Mbps)
PAL (9 Mbps)
Aspect Ratio 16:9 / 1.78:1
17:9 / 1.9:1
Still Image Resolution JPEG: 8.8 Megapixel, 4096 x 2160 (17:9)
JPEG: 8.3 Megapixel, 3840 x 2160 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
JPEG: 0.9 Megapixel, 1280 x 720 (16:9)
Audio Channels 2
Audio Format AAC
Dolby Digital 2-ch
LPCM
Display
Size 3.5" / 8.9 cm
Type Touchscreen
Pixel Count 1,152,000
Rotation 270°
Viewfinder
Type 0.39" / 9.9 mm
1,769,000 dots
Features
Image Stabilization Optical
Electronic (not available in DCI 4K/UHD resolutions)
Minimum Illumination 0.2 lux at f/2.8, 18dB gain, 1/2 second shutter speed, HIGH SENS mode
White Balance Modes Auto
ATW LOCK
3000K
5500K
Variable 2000K-15000K
Ach Fixed
Bch Fixed
Accessory Shoe 1 x Cold Shoe
Input/Output Connectors
Inputs 2 x XLR microphone
1 x 1/8" (3.5 mm) Stereo Mini camera remote
1 x LANC Terminal 2.5 mm super mini jack camera remote
Outputs 1 x A/V
1 x HDMI A (Full Size)
1 x USB 3.0 Type A (Host)
1 x USB Micro-B USB 3.0
1 x Speaker
Microphone Input Yes
Headphone Jack Yes
Power Input 11.4-12.6 VDC EIAJ Type4
General
Power Supply Battery: 7.2 VDC
AC Adapter: 12 VDC
Power Consumption LCD Operation: 19.7 W
Dimensions 6.8 x 7.7 x 13.6" / 17.3 x 19.5 x 34.6 cm
Weight 4.4 lb / 2 kg (without battery or SD card)
Packaging Info
Package Weight 9.35 lb
Box Dimensions (LxWxH) 18.1 x 12.4 x 10.8"
