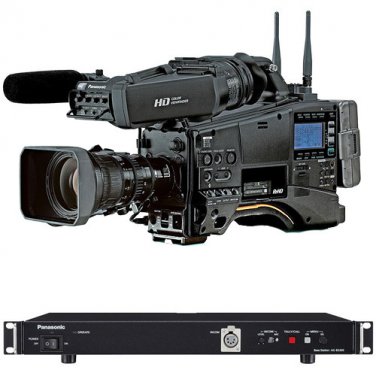

Panasonic Complete AJ-PX380 Camcorder Studio 910 Bundle
AJ-PX380 P2 HD AVC-ULTRA Camcorder with AG-CVF15 Color Viewfinder and 17x Fujinon Zoom Lens
Image Sensor 3 x 1/3" 2.2MP MOS sensors
Effective resolution: 2.2MP
Horizontal Resolution Minimum 1000 TV Lines at Center
Lens Mount System 1/3" Bayonet
Recording
Recording Media 2 x microP2 card slots
1 x P2 card slot
Interface
Inputs/Outputs 1 x 3G-SDI out
1 x SD-SDI In / Out 1 x HDMI out
1 x Video Out / Genlock In (menu Selectable)
1 x Timecode In/Out (menu selectable)
General
Weight Without Battery: Approx. 6.2 lb / 2.8 kg
Packaging Info
Box Dimensions (LxWxH) 23.4 x 19.2 x 15.4"
MS-01 Rear Zoom and Focus Lens Control Kit
Packaging Info
Box Dimensions (LxWxH) 12.835 x 9.685 x 5.354"
SHAN-TM700 Quick-Release Tripod Adapter
Packaging Info
Box Dimensions (LxWxH) 11.4 x 4.0 x 1.9"
AG-BS300PJ Digital Base Station
Input Connectors Incom/Tally: 9-pin Dsub
CA: BNCx1, from AG-CA300G
Return Video: BNCx1
Genlock: BNCx1
DC 12V: XLRx1, 4-pin
AC
Remote: 10-pin
Output Connectors SDI: BNCx2
Video: BNCx1
CA: BNCx1
Genlock Loop: BNCx1
DC 24V: 5-pin
Incom: XLRx1, 5-pin female
Power Supply Input:
100 - 240VAC, 50/60Hz, 1.6A - 0.6A
12VDC, 1.1A
Output:
13VDC, 5A
13VDC, 0.3A (Remote Power)
Dimensions (WxHxD) 17.06 x 1.75 x 14.19" (43.2 x 4.4 x 36 cm)
Weight 11 lbs (5kg)
Packaging Info
Box Dimensions (LxWxH) 21.5 x 21.5 x 6.1"
AK-HRP200 Remote Operation Panel for Panasonic Cameras
Compatible Cameras Via Serial Control Only: AK-HC3500 Professional Studio Camera; AK-HC1800G/HC1500G & AW-HE870N/E Multi-Purpose HD Box Cameras
Via Serial and IP Control: AK-HC3800 Professional Studio Camera and AW-HE120WP/WE/KP/KE & AW-HE60SN/SE/HN/HE Integrated Pan-Tilt Cameras
Power Supply 12 VDC
Power Consumption 4.2 W
CCU Control: Control signals (camera, CCU control)
Power supply (12 VDC)
Tally control signal
Compatible Memory Cards SD Memory Cards: 8 MB to 2 GB
SDHC Memory Cards: 4 to 32 GB
File Type Scene, reference, user, factory, lens, ROP configuration
Preview Control: Contact output
Maximum Cable Length 164' (50 m)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 90% or less
Dimensions (W x H x D) Approximately 3.6 x 12.1 x 2.1" (9.2 x 30.8 x 5.5 mm) excluding protrusions
Weight Approximately 2.9 lb (1.3 kg)
Packaging Info
Box Dimensions (LxWxH) 15.0 x 9.0 x 5.4"
BT-LH910GJ 9" LCD HDMI / SDI Field Monitor (Gold Mount)
Screen Size 9" (23cm) of effective display area
Aspect Ratio 15:9
Resolution 1280 x 768 (WXGA)
Display Colors Approx. 16,770,000 colors
Viewing Angle 176° both of horizontal and vertical
Video Input Video: BNC x 1
Y/PB/PR: BNC x 3 (Y shares with Video)
HDMI: HDMI (type A) x 1 (HDCP supported, embedded audio supported, VIERA Link not supported)
SDI: BNC x 2 (active through connector x 2), SMPTE274M/296M/259M-C/ITU-R BT.656-4 compliant Embedded Audio
HD-SDI: SMPTE299M compliant
SD-SDI: SMPTE272M compliant
VF: D-SUB, 15 pins x 1
Headphone Output M3 stereo mini jack x 1
Remote GPI: D-SUB, 9 pin
SERIAL: D-SUB, 9 pin
Power Input XLR, 4 pin
Operating Temperature 32 to 104°F (0 to 40°C)
Power Requirements 12 VDC (11.0 V - 17.0 V), 1.9 A
Dimensions (WxHxD) 9.06 x 7.20 x 3.06" (230 x 183 x 78 mm) - without stand
Weight 3.7lb (1.7kg)
Packaging Info
Box Dimensions (LxWxH) 14.1 x 13.7 x 11.5"
BT-MOUNT Monitor Mount for Cameras
Packaging Info
Box Dimensions (LxWxH) 5.9 x 3.4 x 3.4"
BTCS910 Viewfinder Cable
Compatible With Shoulder-mount Panasonic cameras
Packaging Info
Box Dimensions (LxWxH) 5.0 x 4.5 x 2.5"
