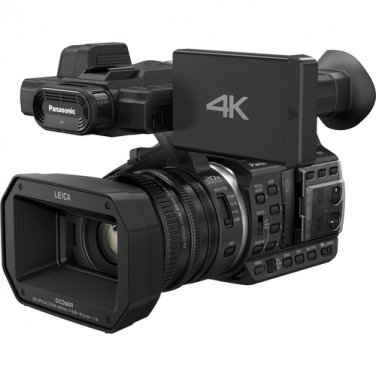

Panasonic HC-X1000 4K DCI/Ultra HD/Full HD Camcorder
Panasonic HC-X1000 Specs
Camera
Sensor 1x 18.47 Megapixel 1/2.3" MOS Sensor
Pixel Gross 18,470,000
Effective Pixels 8.85 Video
8.29 @ Video 16:9
Optics
Focal Length 4.08 - 81.6 mm
35mm Equivalent Focal Length 29.5 - 600 @ Aspect Ratio: 17:9
30.8 - 626 @ Aspect Ratio: 16:9
Maximum Aperture f/ 1.8 - f/ 3.6
Zoom Optical: 20x
Intelligent: 40x (in HD)
Digital: 2x, 5x, 10x
Filter Size 49 mm
Built-In ND Filters Clear, 1/4, 1/16, 1/64
Recording
System NTSC/PAL
Recording Media SDHC/SDXC
Video Format System frequencies are switchable between NTSC and PAL. Playback is not possible on TVs and other devices with a standard that differs from the system frequency setting of this unit.
If you record an AVCHD scene on an SD card, it cannot be used with a different system frequency. Use another SD card when you change the system frequency.
MP4:
C4K 24p 100M: 4096 x 2160, Average 100 Mbps (VBR), LPCM
4K 59.94p/50p 150M: 3840 x 2160, Average 150 Mbps (VBR), LPCM
4K 29.97p/25p 100M: 3840 x 2160, Average 100 Mbps (VBR), LPCM or AAC
4K 23.98p 100M: 3840 x 2160, Average 100 Mbps (VBR), LPCM
FHD 59.94p/50p 200M (ALL-Intra): 1920 x 1080, Average 200 Mbps (VBR), LPCM
FHD 59.94p/50p 100M: 1920 x 1080, Average 100 Mbps (VBR), LPCM
FHD 59.94p/50p 50M: 1920 x 1080, Average 50 Mbps (VBR), LPCM or AAC
FHD 29.97p/25p 200M (ALL-Intra): 1920 x 1080, Average 200 Mbps (VBR), LPCM
FHD 29.97p/25p 50M: 1920 x 1080, Average 50 Mbps (VBR), LPCM
FHD 23.98p 200M (ALL-Intra): 1920 x 1080, Average 200 Mbps (VBR), LPCM
FHD 23.98p 50M: 1920 x 1080, Average 50 Mbps (VBR), LPCM
MOV:
FHD 59.94p/50p 200M (ALL-Intra): 1920 x 1080, Average 200 Mbps (VBR), LPCM
FHD 59.94p/50p 100M: 1920 x 1080, Average 100 Mbps (VBR), LPCM
FHD 59.94p/50p 50M: 1920 x 1080, Average 50 Mbps (VBR), LPCM
FHD 29.97p/25p 200M (ALL-Intra): 1920 x 1080, Average 200 Mbps (VBR), LPCM
FHD 29.97p/25p 50M: 1920 x 1080, Average 50 Mbps (VBR), LPCM
FHD 23.98p 200M (ALL-Intra): 1920 x 1080, Average 200 Mbps (VBR), LPCM
FHD 23.98p 50M: 1920 x 1080, Average 50 Mbps (VBR), LPCM
AVCHD:
PS 1080 59.94p/50p: 1920 x 1080, Average 28 Mbps (VBR)
PH 1080 59.94i/50i: 1920 x 1080, Average 24 Mbps (VBR)
HA 1080 59.94i/50i: 1920 x 1080, Average 17 Mbps (VBR)
HE 1080 59.94i/50i: 1440 x 1080, Average 5 Mbps (VBR)
PM 720 59.94p/50p: 1280 x 720, Average 8 Mbps (VBR)
Aspect Ratio 16:9
17:9
Still Image Resolution JPEG: 8.8 Megapixel, 4096 x 2160 (17:9)
JPEG: 8.3 Megapixel, 3840 x 2160 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
Channels 2
Audio Format AAC
Dolby Digital 2-ch
LPCM
Display
Type 3.5" (8.9 cm) Touchscreen LCD
1,152,000 pixel count
270° rotation
0.45" (1.1 cm) Viewfinder
1,226,880 pixel count
Exposure Control
Shutter Speed Not Specified By Manufacturer
Features
Image Stabilization Optical
Lux 1400
4 (Super Gain 30 dB, Shutter 1/30)
White Balance Modes 3000K
5500K
Auto
Manual
Built-in Mic Yes
Built-in Speaker Yes
Wi-Fi Yes, 802.11b/g/n
Accessory Shoe 1x Cold Shoe
Tripod Mount 1/4" - 20
Input/Output Connectors
Inputs 2x XLR microphone
1x 1/8" (3.5 mm) Stereo Mini camera remote
1x LANC Terminal 2.5 mm super mini jack camera remote
Outputs 1x A/V
1x HDMI A (Full Size)
1x USB 3.0 Type A (Host)
1x USB Micro-B USB 3.0
Microphone Input Yes
Headphone Jack Yes
General
Battery Rechargeable Lithium-Ion Battery Pack, 7.2 VDC
Charging Method AC Adapter
Power Consumption In LCD Operation: 15.4 W
In Viewfinder Operation: 14.3 W
Dimensions 6.3 x 6.7 x 12.4" (16 x 17 x 31.5 cm)
Weight 3.41 lb (1.5 kg) (without battery or SD card)
Packaging Info
Package Weight 8.0 lb
Box Dimensions (LxWxH) 16.4 x 11.0 x 9.7"
