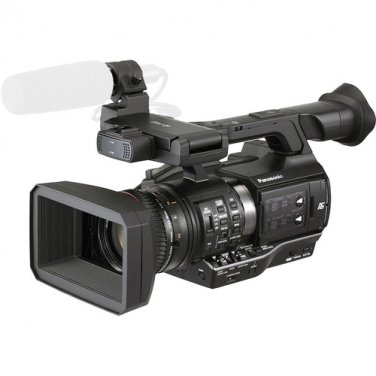

Panasonic AJ-PX270 microP2 Handheld AVC-ULTRA HD Camcorder
Panasonic AJ-PX270 Specs
Image Device 1/3" 3MOS, 2.2 MP
Resolution 1920 x 1080
Lens 22x Optical Zoom Lens
Minimum Illumination 0.02 Lux (F1.6, Gain 18dB, 1 second exposure, High Sens mode)
Built-in Filters ND Clear
1/4
1/16
1/64
Recording Frame Rate 720 x 480: 59.94i, 29.97p
720 x 576: 50i, 25p
1280 x 720pN 23.98/29.97
1280 x 720p 23.98/25/29.97/50/59.94
1920 x 1080i 50/59.94
1920 x 1080pA 23.98 1920 x 1080pN 23.98/29.97
1920 x 1080p 23.98/25/29.97/50/59.94
Recording Format AVC Intra
100/50
Inter
LongG: G12/G25/G50
LongG6: Proxy
DVCPROHD(except 720p/24p,30p,25p)
DVCPRO50/DVCPRO/DV
Note: The AJ-PX270 does not support all of the formats included in the AVC-ULTRA family. AVC-200 is announced as an update available June, 2014
Memory Card Slot 2 x Micro P2
1 x P2
1 x SD
LCD Monitor 3.5", QHD, approximately 156k dots
Viewfinder 0.5" OLED, approximately 1.76 MP resolution
Input and Output Connectors Video Input
Timecode: 1 x BNC
Genlock: 1 x BNC (shared with video out)
Video Output
3G-SDI: 1 x BNC
Video: 1 x BNC (Combo Genlock in/Video out)
Audio Input
Balanced: 2 x XLR
Audio Output
Audio out: 1 x
Headphone out: 1 x
Power Requirements 7.2VDC
Uses: VW-VBD58 battery
Compatible: CGA-D54
Dimensions 6.9 x 6.7 x 13" / 176 x 171 x 329 mm
Weight 4.9 lb / 2.2 kg (body only)
5.7 lb / 2.6 kg (including lens hood, supplied battery, and microphone holder)
