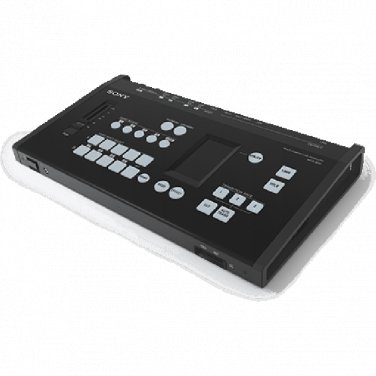

Sony MCX-500 4-Input Streaming Switcher
SPECIFICATIONS::
SPECS:
General
Power requirement DC 12V, Approx. 2.2A *1
Dimensions (W x H x D) 362 × 43.5 × 206 mm (Approx.)
Mass Approx. 2.2 kg *1
System
Video format 1080/59.94i Hz (60i)
1080/50i Hz (50i)
Streaming
Protocol Mpeg-2 TS/UDP
Recording
Format AVCHD, XAVC S *2
Media Memory Stick ProDuo™, SDHC
Video switcher
Function Input : 8 Primary Video inputs ＋ Title, 4 Channel
1 M/E + 2 Keyer (1 x PinP, 1 x Title)
Output : PGM Output、Multi View Output
Key Type Luminance Key / Chroma key
Audio mixer
Function Input: Analog Stereo(x1) / Stereo Embedded Audio inputs(x4)
Mixing: Stereo Mixing (x5)
Output: PGM (Stereo) (x1)
Video input
SDI BNC (x4), 75 Ω, 3G SDI/HD/SD
SMPTE 292M/259M/424M/425M
HDMI Type A (x2)
(20x480/576, 1280x720, 1920x1080)
VIDEO input BNC (x1), NTSC/PAL
VIDEO: 1.0 Vp-p 75 Ω, negative sync
RGB D-Sub Shrink 15-pin (x1) (Female)
(1600x1200)
Video output
HD SDI BNC (x1, PGM) 75 Ω, 1.5 Gbps, 270 Mbps
SMPTE 292M
HDMI HDMI (Type A) (x1, PGM) (720x480/576, 1280x720, 1920x1080)
HDMI (Type A) (x1, Multi View) (720x480/576, 1280x720, 1920x1080)
VIDEO output BNC (x1)
VIDEO: 1.0 Vp-p 75 Ω, negative sync
Audio input
Embedded audio input SDI/HDMI
Analog input XLR (x1)
Audio output
Embedded audio output SDI/HDMI
Analog output Phono jack (CH-1, CH-2)
Headphones Stereo mini jack (x1), RJ-45 (x2, PC UI Streaming)
