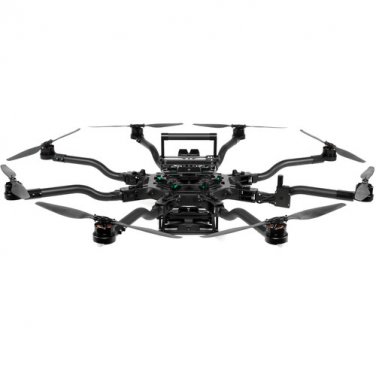

FREEFLY ALTA 8 UAS for Aerial Cinematography
FREEFLY Alta 8 Specs
Performance
Payload Capacity Up to 20.0 lb / 9.1 kg
Specific Power 145 W/kg
Thrust Ratio 1.85:1
Frame
Payload Mounting Mounting Locations: Bottom and top mount
Mounting System: Freefly Toad in the Hole, (TITH) Quick Release
FPV Camera Mount: Between Booms 8 & 1
FPV Transmitter Mount: Boom 2
Isolation System Vibration Isolation System: Silicone O-Rings
Soft / Light Payloads: Red O-Rings
Medium / Medium Payloads: Teal O-Rings
Stiff / Heavy Payloads: Black O-Rings
Lighting and Indication Status Light: 1 W red, 1 W white LEDs
Orientation Lights: 3 W RGB LED
Orientation Light Color Options: Red, Yellow, Blue, Green, White
Motors
Model Freefly F45
Quantity 8
Type Direct Drive 3-Phase PMAC Outrunner
Max Continuous Power Output 350 W
Max Instantaneous Peak Power 950 W
Maximum RPM 6300 rpm (flat rated)
Motor Velocity Constant 384 Kv
ESC Model: Freefly Silent-Drive Sine Wave ESC
Flight Controller
Model Freefly SYNAPSE flight controller
Number of Channels Transmitter must support more than 5 channels
Supported Radios Futaba S.Bus & S.Bus2
DSMX
DSM2 (Spektrum/JR)
PPM
PPM Invert
PPM Graupner
Supported Telemetry Systems Futaba w/ built-in voltage sense port
Connectivity Inputs: DSMX, DSM2, S.Bus, S.Bus2, PPM, FPV SD
Flight Modes Manual
Height Mode
Position Mode
Return-To-Home
Autoland
GPS Support GNSS: GPS, GLONASS, Galileo
SBAS: QZSS, WAAS, EGNOS, MSAS
Telemetry
Installed Transceivers Wi-Fi
Data Logging Rate 25 Hz
FPV and Monitoring
Supported FPV Transmitters Skyzone
BOSCAM
ImmersionRC
Fat Shark
Note: NTSC and PAL FPV devices supported
Supported FPV Cameras Ready Made RC
OSD Support Depends on installed telemetry system (available separately)
Propellers
Model Freefly ALTA
Type 18 x 6 folding
Configuration 4 x CW and 4 x CCW propellers
Material Carbon fiber with balsa core
Flight Battery Requirements
Voltage 6S / 22.2V
Maximum Battery Size 9.44 x 7 x 3.14" / 240 x 180 x 80 mm
Battery Quantity 2 battery packs (parallel)
Connector 2 x EC5 (parallel)
Discharge Rate Per Pack: 250 A / 500 A peak (or better)
General
Dimensions Unfolded Diameter: 52.16" / 1325 mm (does not include Props)
Folded Diameter: 25.98" / 660 mm (does not include Props)
Height to base of Toad in The Hole (TITH): 10.35" / 263 mm
Weight Maximum Gross for Takeoff: 40 lb /18.1 kg
Maximum Useful Load: 26.4 lb / 12 kg
Maximum Payload: 20.0 lb / 9.1 kg
Typical Standard Empty Weight: 13.6 lb / 6.2 kg
Packaging Info
Box Dimensions (LxWxH) 67.0 x 33.0 x 23.0"
