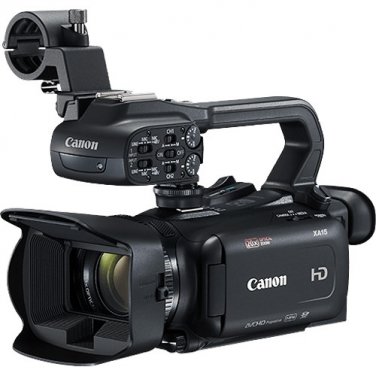

Canon XA15 Compact Full HD Camcorder with SDI, HDMI, and Composite Output
Canon XA15 Specs
Image Device 1/2.84" HD CMOS Pro sensor
Total Pixels: 3.09 MP
Effective Pixels: 2.91 MP
RGB primary color filter
Compatible with NTSC
Lens Zoom Range: 20x optical
Iris Range: f/1.8 to f/16
Focal Length: 3.67 to 73.4mm
35mm Equivalent: 28.8 to 576mm (26.8 to 576mm with Wide View Angle)
Minimum Focus Wide (Macro): 0.4" / 10 mm
Minimum Focus Throughout Zoom Range: 23.6" / 60 cm
Filter Ring Size: 58 mm
Zoom Speed Settings: Variable, Constant (16 levels), Fast, Normal, Slow
Minimum Illumination Auto Mode: 1.0 lux (Auto Slow Shutter)
Low Light Mode: Approx 0.1 lux
Viewscreen Capacitive Touch Panel
3" / 7.5 CM
Pixel Count: Approximately 460,000 dots
EVF Color EVF
Size: 0.24" / 0.61 cm
Pixel Count: Approximately 1,560,000 dots
Media Card Slots 2 x SD/SDHC/SDXC
Recording Format AVCHD: 28/24/17/5 Mbps
H.264: 35/24/17/9/3 Mbps
Shutter Speed 1/6 to 1/2000 per sec (depending on frame rate and operating mode)
Inputs/Outputs Input
2 x 3-pin XLR, Mic/Line (on handgrip accessory)
1 x 3.5 mm stereo mini-jack
1 x 2.5 mm LANC mini-jack, remote control input
Output
1 x 3.5 mm mini-jack A/V terminal (composite video, audio)
1 x Mini-USB 2.0 (output only)
1 x BNC, HD/SD-SDI
1 x HDMI type A
1 x Built-in speaker
Audio Linear PCM 4-channel or 2-channel, 16-bit/48 kHz
Power Requirements Battery: 7.4 VDC
Power Supply: 8.4 VDC
Consumption: 4.9 W (approximately)
Operating Temperature 23 to 113°F / -5 to 45°C, 60% RH
32 to 104°F / 0 to 40°C, 85% RH
Dimensions (WxHxD) 5.2 x 7.1 x 9.1" / 13.21 x 18.03 x 23.11 cm (with lens hood, mic holder unit, handle unit)
Weight 1.7 lb / 750 g
Packaging Info
Package Weight 4.7 lb
Box Dimensions (LxWxH) 11.0 x 10.75 x 8.5"
